Designing PCBs with code

by Kaspar Emanuel

animation: @ExUtumno

1 / 35

About Me

Freelance electronic engineer and software developer
Love writing code and love open source (especially electronics)
github.com/kasbah

2 / 35

These are some projects that I work on, ones a chair controller for virtual reality another is a braille e-book reader

3 / 35

You will notice I like to code and that I like hardware
But I didn't say I like designing hardware all the much
I get very frustrated with designing electronic circuits
This is how it is typically done
Generally you have a schematic entry tool
And PCB layout tool
You draw out a schematic, which is a sort of map where you want all your connections to go.
And then place them onto a model of a board and route the connections your previously defined

4 / 35

If you are designing digital hardware, something to be run on an FPGA
You can actually use schematic entry as well
But hardware description languages were invented in the 80s
And largely that's how we digital design circuits now

5 / 35

Because schematic entry for this sort of task becomes way too confusing


-- (this is a VHDL comment)
-- import std_logic from the IEEE library
library IEEE;
use IEEE.std_logic_1164.all;
-- this is the entity
entity ANDGATE is
  port (
    I1 : in std_logic;
    I2 : in std_logic;
    O  : out std_logic);
end entity ANDGATE;
-- this is the architecture
architecture RTL of ANDGATE is
begin
  O <= I1 and I2;
end architecture RTL;

6 / 35

So we use code to describe logic circuits because it's much easier to manage that complexity
These are known as "hardware description languages" or HDLs
These are for digital logic circuits

7 / 35

So schematic entry for PCB designs can get quite confusing as well
Especially if we have high pin count components like FPGAs actually
These days schematics use a lot of labels, so generally your wires jump all over the place
And creating these kinds of schematics in a graphical way can be very tedious as well

Can we use HDLs for analog circuits?

//Verilog-A (1993) and Verilog-AMS (2000)
`include "constants.vams"
`include "disciplines.vams"
// Simple ADC model
module adc_simple(clk, dout, vref, vin);
    // Parameters
    parameter integer bits = 4 from[1:24]; // Number of bits
    parameter integer td = 1 from[0:inf);  // Processing delay of the ADC
    // Define input/output
    input clk, vin, vref;
    output [bits-1:0] dout;
    electrical vref, vin;
    logic clk;
    reg [bits-1:0] dout;
    // Internal variables
    real ref, sample;
    integer i;
  ...

8 / 35

People have tried to extend HDLs for analog and mixed signal design
Verilog-A was defined in 1993 and it was merged into Verilog-AMS in 2000

-- VHDL-AMS
-- IEEE 1076.1-1999
library IEEE;
use IEEE.math_real.all;
use IEEE.electrical_systems.all;
entity DIODE is
   generic (iss : current := 1.0e-14;  -- Saturation current
            af  : real    := 1.0;      -- Flicker noise coefficient
            kf  : real    := 0.0);     -- Flicker noise exponent
   port (terminal anode, cathode : electrical);
end entity DIODE;
architecture IDEAL of DIODE is
  quantity v across i through anode to cathode;
  constant vt : voltage := 0.0258;     -- Thermal voltage at 300 K
begin
  i == iss * (exp(v/vt) - 1.0);
end architecture IDEAL;

Also: "Circuit Description Language" (Taku Noda, IPST 1999)

9 / 35

There is also an Analog and mixed signal extension for VHDL
Another one I came across in a paper from 1999
and I couldn't find any implementation
The focus of these seems on simulation and verification
Rather than just pure schematic entry
So that means you have to know a lot about the behaviour of your circuits
What we want is something to help us create netlists just as we do from schematics

SPICE

AMP2.CIR – CASCADED OPAMPS
*
VS    1    0    AC    1    SIN(0 1 10KHZ)
*
R1    1    2    5K
R2    2    3    10K
XOP1    0 2    3    OPAMP1
R3    4    0    10K
R4    4    5    10K
XOP2    3 4    5    OPAMP1
*
* SINGLE-POLE OPERATIONAL AMPLIFIER MACRO-MODEL
* connections:      non-inverting input
*                   |   inverting input
*                   |   |   output
*                   |   |   |
.SUBCKT OPAMP1      1   2   6
* INPUT IMPEDANCE
RIN     1          2          10MEG
* DC GAIN (100K) AND POLE 1 (100HZ)
EP1    3 0    1 2    100K
RP1    3    4    1K
CP1    4    0    1.5915UF
* OUTPUT BUFFER AND RESISTANCE
EOUT    5 0    4 0    1
ROUT    5    6    10
.ENDS
*
* ANALYSIS
.TRAN    0.01MS  0.2MS
* VIEW RESULTS
.PLOT TRAN V(1) V(5)
.END

10 / 35

What do people want when they want to make hardware more like software?

Fast build/test iteration cycles
Use programming constructs and tools for a faster/better design process
Modularity and re-usability

11 / 35

/* PHDL - PCB hardware description language (Brent Nelson, 2011)*/
// A surface mount resistor
device resistor {
  attr REFPREFIX = "R";
  attr FOOTPRINT = "R0805";
  attr LIBRARY = "rcl-smd";
  attr VALUE = "1k";
  pin a = {1};
  pin b = {2};
}
design top {
  net vcc, vout, gnd;
  inst r1 of resistor {
    a = vcc;
    b = vout;
  }
  inst r2 of resistor {
    a = vout;
    b = gnd;
  }
}

12 / 35

So that's what PHDL, the PCB Hardware Description Language is
This is the earliest project that I found that has this focus
it was created in 2011
It has quite a clean syntax for defining devices and their connections
There are more advanced language features that didn't fit on the slide as well
There is a sort of slice notation for making multiple connections and there is a native module system

PHDL

From 2011
New language
Java based compiler & Eclipse IDE plugin
Outputs Eagle and Orcad netlists natively

13 / 35

But it is a new language which has it's pros and cons
You get this clean syntax but it's not as expressive as a general purpose language
This is a compiler written in Java that can output netlists for quite a few different PCB design tools
It also has an eclipse plugin so you can write descriptions with the help of an IDE

SKiDL

Created in 2016
A library/language in Python
Outputs KiCad netlists

from skidl import *
gnd = Net('gnd')  # Ground reference.
vin = Net('vin')   # Input voltage to the divider.
vout = Net('vout')  # Output voltage from the divider.
r1, r2 = 2 * Part('device', 'R', TEMPLATE)  # Create two resistors.
r1.value, r1.footprint = '1K',  'Resistors_SMD:R_0805'  # Set resistor values
r2.value, r2.footprint = '1K', 'Resistors_SMD:R_0805'  # and footprints.
r1[1] += vin      # Connect the input to the first resistor.
r2[2] += gnd      # Connect the second resistor to ground.
vout += r1[2], r2[1]  # Output comes from the connection of the two resistors.
generate_netlist()

14 / 35

The next one I came across was SKiDL
So this is Python
There is a bit of operator overloading going on here which might confuse you
But it's essentially a set of classes to help you design circuits
An you can then do the rest of your design in the KiCad layout tool


from skidl import *
# Define the voltage divider module. The @subcircuit decorator
# handles some skidl housekeeping that needs to be done.
@subcircuit
def vdiv(inp, outp):
    """Divide inp voltage by 3 and place it on outp net."""
    rup = Part('device', 'R', value='1K', footprint='Resistors_SMD:R_0805')
    rlo = Part('device','R', value='500', footprint='Resistors_SMD:R_0805')
    rup[1,2] += inp, outp
    rlo[1,2] += outp, gnd
gnd = Net('GND')         # GLobal ground net.
input_net = Net('IN')    # Net with the voltage to be divided.
output_net = Net('OUT')  # Net with the divided voltage.
# Instantiate the voltage divider and connect it to the input & output nets.
vdiv(input_net, output_net)
generate_netlist()

15 / 35

pycircuit

Created in 2017
A library/language in Python
Outputs KiCad PCB files and Yosys netlists

@circuit('Voltage Divider', 'gnd', None, 'vin', 'vout')
def voltage_divider(self, gnd, vin, vout):
    Inst('R', '1k 0805')['~', '~'] = vin, vout
    Inst('R', '1k 0805')['~', '~'] = vout, gnd
@circuit('Top')
def top(self):
    vin, vout, gnd = nets('vin vout gnd')
    SubInst(voltage_divider())['vin', 'vout', 'gnd'] = vin, vout, gnd

16 / 35

pycircuit is also a very recent project for designing circuits using Python
In fact it's so very much in flux that this slide is out of date already
It has some interesting experimental features, one is this idea that you break up your component definitions into several sub-functions

Pycircuit for layout


def place(fin, fout):
    p = Placer()
    p.place(fin, fout)
def route(fin, fout):
    r = Router(grid_size=.5, maxflow_enforcement_level=3)
    r.route(fin, fout)
outline = rectangle_with_mounting_holes(20, 10, inset=1, hole_shift=2, hole_dia=1)
Builder(top(), outline=outline,
    pcb_attributes=oshpark_2layer(),

17 / 35

// replicad
var {Resistor, Power, Ground, Output} = require('replicad')
function resistorDivider(value1, value2) {
  var r1 = Resistor(value1)
  var r2 = Resistor(value2)
  var vcc = Power()
  var gnd = Ground()
  var vout = Output()
  var circuit = Circuit()
  circuit.chain(vcc, r1, vout, r2, gnd);
  return circuit
}
var circuit = resistorDivider('1k', '500 ohm')

A domain specific language in Javascript
Work in progess!

18 / 35

replicad

Goals:
- Initial goal is to offer netlist/schematic entry only
- Make it easier to design and reason about circuits
- Confirm Atwood's Law
- Static analysis to make it very hard to create bugs
- Encourage design re-use
Implementation details:
- Variable names are used as schematic references
- Circuit objects are explictely modified by adding connections
- Function arguments are parameters not inputs/outputs

19 / 35

PCB hardware description languagesPros:Define once and re-use
Use for-loops, slice notation

Issues:It's hard to visualize
Circuit definition can still be very tedious
Debugging could easily become a nightmare

20 / 35

I have tried some of these out and contributed a bit
And while I can see the power, of design defining once and reusing and using for loops and other programming constructs to reduce tedium
there are still some issues
- Circuit definition can still be very tedious
- It's hard to visualize
- Debugging could easily become a nightmare
So I want to

Visualization

21 / 35

So let's cover visualisation, that's something I have been looking into recently.
Schematics, even though I don't necessarily want to draw them, I do want to read them

SKiDL

22 / 35

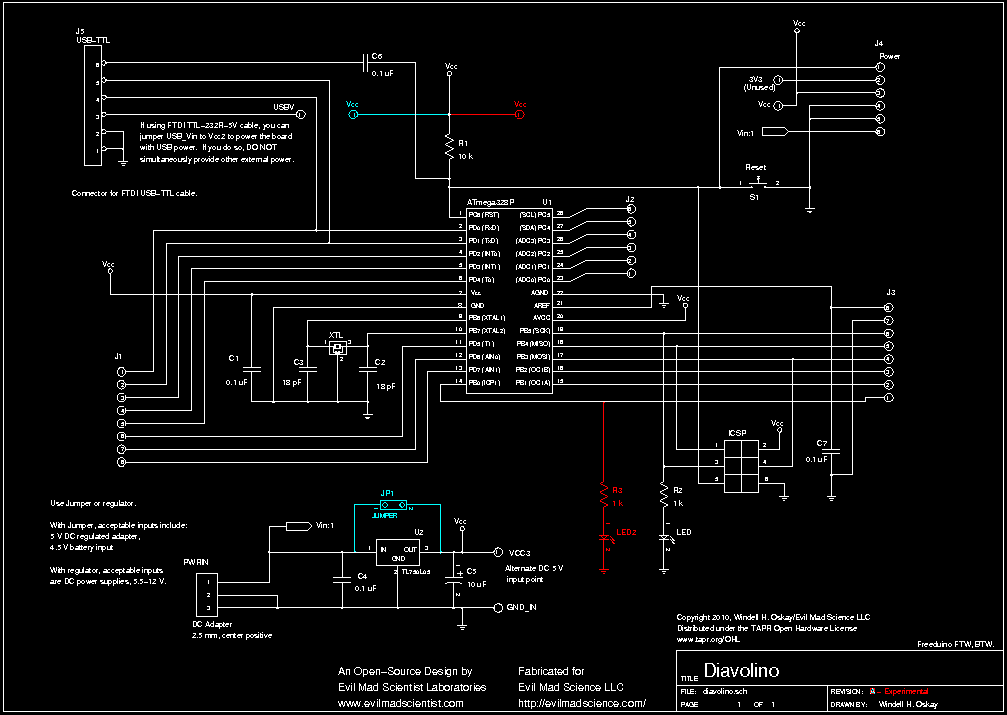

To SKiDL I contributed a bit of code to output Graphviz graphs
If you don't know graphviz, it's quite a nifty tool to draw graphs without actually having to draw them
So it's a sort of programmatic description of graphs
So I tried to make this similar to schematics, but it's obviously a bit different

pycircuit

23 / 35

For pycircuit there's also a Graphviz output created by pycircuit's creator David Craven
The reason this looks like this is you can do layout with pycircuit as well
So this is used to highlight nets in the interactive viewer, that's why you have such big clickable nodes here

24 / 35

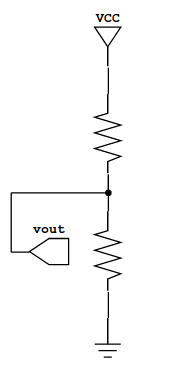

So even more recently I came across something called netlistsvg
This converts Yosys netlists to very nice looking schematics
This uses KlayJS, or soon to be ELKJS which is the Eclipse Layout Kernel under the hood
Which uses a similar algorithm to Graphviz

25 / 35

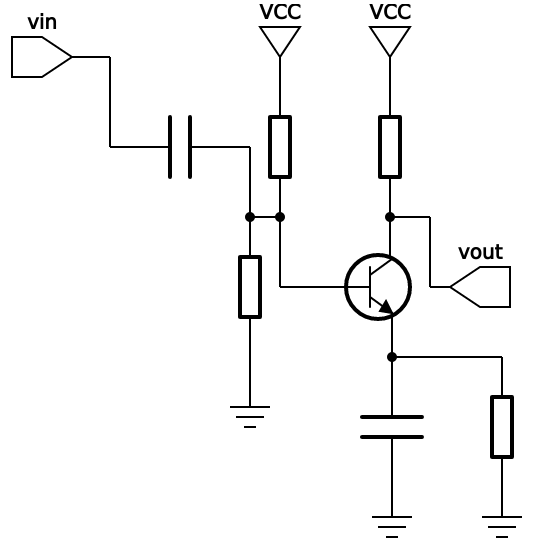

So me and Neil Turley have been playing around with creating analog or more accurately mixed signal schematics using a different SVG skin
And the results are pretty impressive actually
Something to note here is that the connections kind of flow up to down and left to right
So with some more tweaks I think this may actually result in more readable schematics than hand drawn ones
Since it always follows a convention
How we scale this up, is to be seen. I think it will require some sort of hierarchy browser so you can zoom in out out the design so to speak
But I think this is really promising and will be investing some time into this, and enabling these languages to make use of this

26 / 35

The language of electronics

27 / 35

Electro Grammar (demo)

> var {parse} = require('electro-grammar')
> parse('100nF 0603 C0G 10% 25V')
{ type: 'capacitor',
  capacitance: 1e-7,
  size: '0603',
  characteristic: 'C0G',
  tolerance: 10,
  voltage_rating: 25 }
> parse('1k 0805 5% 125mW')
{ type: 'resistor',
  resistance: 1000,
  size: '0805',
  tolerance: 5,
  power_rating: 0.125 }
> parse('green led 1206')
{ type: 'led', color: 'green', size: '1206' }

28 / 35

I developed something called electro-grammar
Which is a little natural language parser for component description
The thinking here is: we already have quite a precise way to describe components
So we should use that as part of our circuit description languages
This is currently in Javascript, but I am working on a Python port in the hopes of contributing this to the aforemention Python DSLs

Electro Grammar v1JavaScript only
Capacitors, resistors and LEDs (SMD only)
Lax parser only (any-order, ignores invalid input)
Electro Grammar v2Work in progress!
Uses Antlr4: JavaScript, Python, Java, C (& C++), Go
Capacitors, resistors, LEDs, diodes, transistors (SMD & through-hole)
Strict and lax parser
29 / 35

Should you use it?

PHDL: alpha (and some bitrot since 2012)
SKiDL: alpha
pycircuit: experimental
replicad: vaporware?

30 / 35

What about footprints?

KicadModTree: a Python DSL for KiCad footprints
qeda: A Coffeescript/Javascript utility for schematic symbol and footprint generation

What about layout?

pycircuit: DSL for footprints, experimental layout and routing using SMT solvers
KiCad python scripting

31 / 35

What do people want when they want to make hardware more like software?

Fast build/test iteration cycles
Use programming constructs and tools for a faster/better design process
Modularity and re-usability

32 / 35

Lets just sum up our goals with all of this
I have talked a lot about improving the design process
All of these languages hope to give you the ability to reuse bits of designs
Either through language native module systems or otherwise

Diffs

33 / 35

34 / 35

And I'd be amiss not to plug the project where on which I spend most of my free time
Which is kitspace.org, a registry for electronics designs,
You can put up projects made in any way on there and it makes it easier for people to re-build other peoples projects
With it I am trying to create an NPM or Python Package index of reusable electronics projects
And it would be really interesting to hook into the design reuse features of whatever design tool people are using

Questions?

github.com/kasbah

Thanks to:

Brent Nelson and co (PHDL),
Dave Vandebout (SKiDL),
David Craven (pycircuit),
Neil Turely (netlistsvg)
All contributors to:
- Graphviz
- ELK and ELKJS
- Nearley parser generator
- Antlr4 parser generator

35 / 35

↑, ←, Pg Up, k	Go to previous slide
↓, →, Pg Dn, Space, j	Go to next slide
Home	Go to first slide
End	Go to last slide
Number + Return	Go to specific slide
b / m / f	Toggle blackout / mirrored / fullscreen mode
c	Clone slideshow
p	Toggle presenter mode
t	Restart the presentation timer
?, h	Toggle this help

Designing PCBs with code

by Kaspar Emanuel

animation: @ExUtumno

Can we use HDLs for analog circuits?

SPICE

What do people want when they want to make hardware more like software?

PHDL

SKiDL

pycircuit

Pycircuit for layout

replicad

PCB hardware description languages

Visualization

SKiDL

pycircuit

The language of electronics

Electro Grammar (demo)

Electro Grammar v1

Electro Grammar v2

Should you use it?

What about footprints?

What about layout?

What do people want when they want to make hardware more like software?

Diffs

Help
